Easylube^® Retail Kits

Path Homepage / Products / Accessories Set / Retail Kits

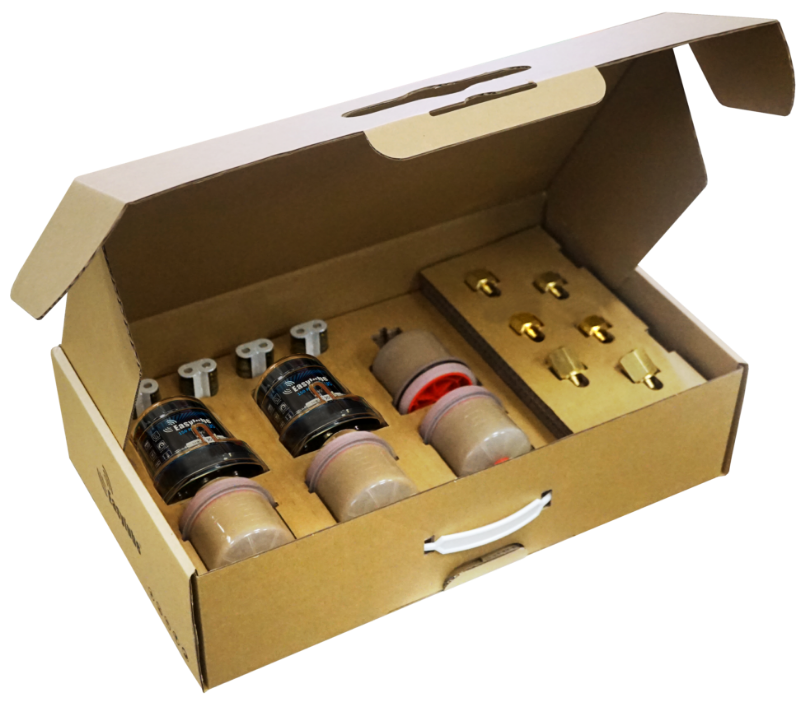

Easylube® Retail Box

Product Description

Various accessory sets provided, which can be selected and used according to your equipment needs. It contains automatic lubricators developed by Easylube^®, high-performance grease, explosion proof safety batteries, and two different installation methods, "direct installation" and "remote installation", which can be chosen to form the rest of the part sets.

Convenient retail kit coding instructions：

Easylube® Retail Box - encoding rules

①Item

Easylube Retail Kit

②Capacity

60, 150, 250

③Lubricator Model Number

R：RFID, E：Elite, C：Classic

④Grease Type

1000, 1500, 2000, 5000, 0000

⑤Installation method

A：Direct Installation
B：Remote Installation + PU Pipe
C：Remote Installation + Copper Pipe

Easylube® Retail Kit

Product Type

Easylube® RFID

Lubricator Model Number：

60 / 150 / 250 RFID

Retail Kit：

Product Number：

60 RFID：ER_60R_1000A, ER_60R_1500A, ER_60R_2000A, ER_60R_5000A

150 RFID：ER_150R_1000A, ER_150R_1500A, ER_150R_2000A, ER_150R_5000A

250 RFID：ER_250R_1000A, ER_250R_1500A, ER_250R_2000A, ER_250R_5000A

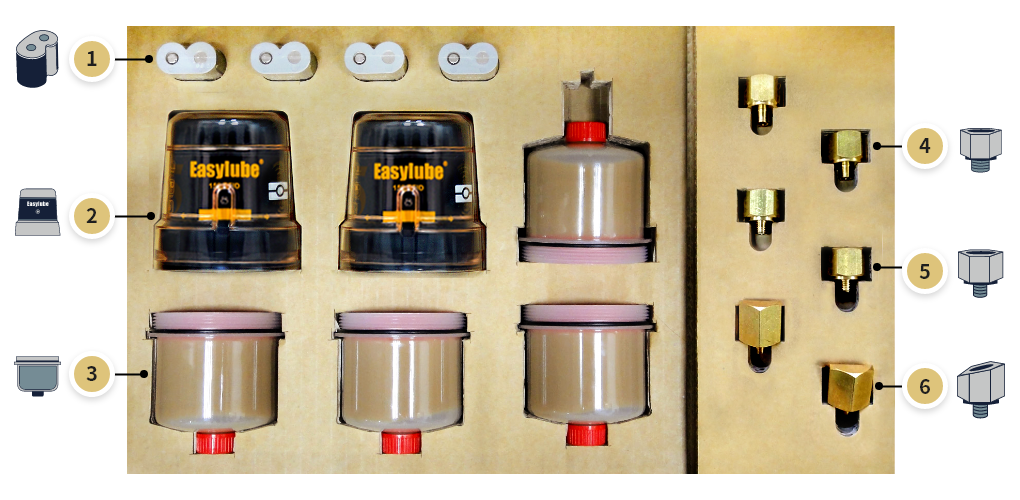

Easylube® RFID - Direct installation (A)

① Battery：P-613B

② Automatic Lubricators：60, 150, 250 RFID

③ Grease：1000, 1500, 2000, 5000

④ Straight Connection Parts：P-401S

⑤ Straight Connection Parts：P-410S

⑥ 45° Angle Connection Parts：P-401A

Easylube® RFID - Remote installation (B)

① Battery：P-613B

② Automatic Lubricators：60, 150, 250 RFID

③ Grease：1000, 1500, 2000, 5000

④ C Type Holder：P-506C

⑤ PU Hose：P-508U

⑥ PU Hose Connector：P501U

⑦ PU Hose Connector Holder：P-405F

⑧ PU Hose 90° Angle Connector：P-591U

Easylube® RFID - Remote installation (C)

① Battery：P-613B

② Automatic Lubricators：60, 150, 250 RFID

③ Grease：1000, 1500, 2000, 5000

④ C Type Holder：P-506C

⑤ Copper Pipe：P-608H

⑥ Copper Pipe Connector：P-601H

⑦ Copper Pipe Connector Holder：P-406F

⑧ Copper Pipe 90° Angle Connector：P-691H

Easylube® Elite

Lubricator Model Number：

60 / 150 / 250 Elite

Retail Kit：

Product Number：

60 Elite：ER_60E_1000A, ER_60E_1500A, ER_60E_2000A, ER_60E_5000A

150 Elite：ER_150E_1000A, ER_150E_1500A, ER_150E_2000A, ER_150E_5000A

250 Elite：ER_250E_1000A, ER_250E_1500A, ER_250E_2000A, ER_250E_5000A

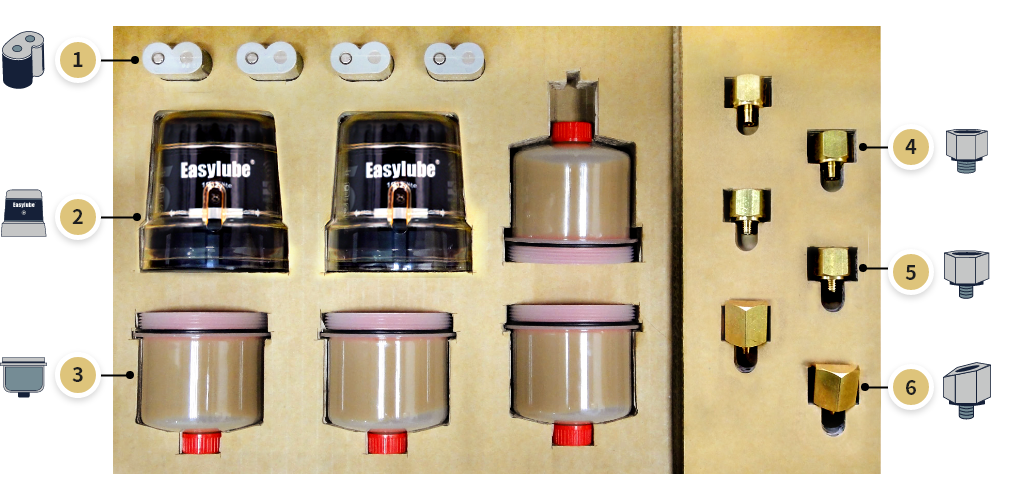

Easylube® Elite - Direct installation (A)

① Battery：P-613B

② Automatic Lubricators：60, 150, 250 Elite

③ Grease：1000, 1500, 2000, 5000

④ Straight Connection Parts：P-401S

⑤ Straight Connection Parts：P-410S

⑥ 45° Angle Connection Parts：P-401A

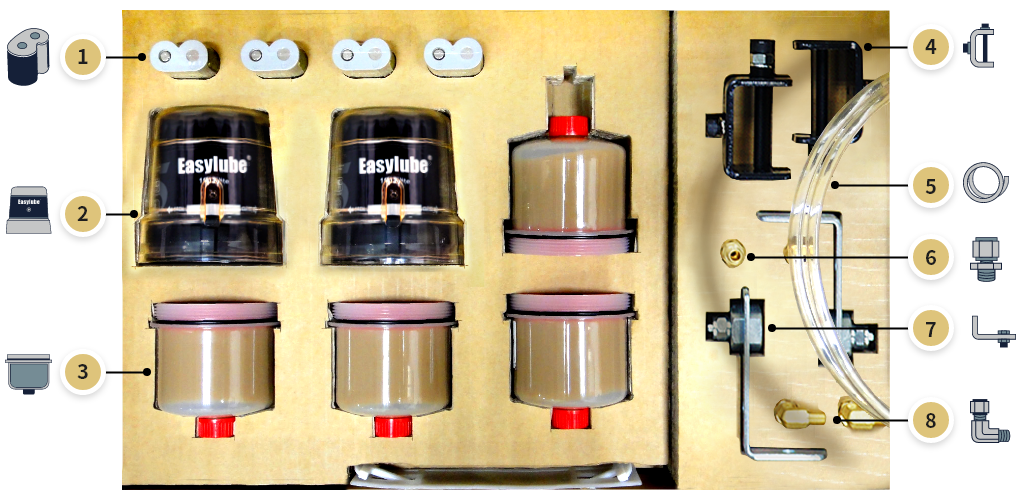

Easylube® Elite - Remote installation (B)

① Battery：P-613B

② Automatic Lubricators：60, 150, 250 Elite

③ Grease：1000, 1500, 2000, 5000

④ C Type Holder：P-506C

⑤ PU Hose：P-508U

⑥ PU Hose Connector：P501U

⑦ PU Hose Connector Holder：P-405F

⑧ PU Hose 90° Angle Connector：P-591U

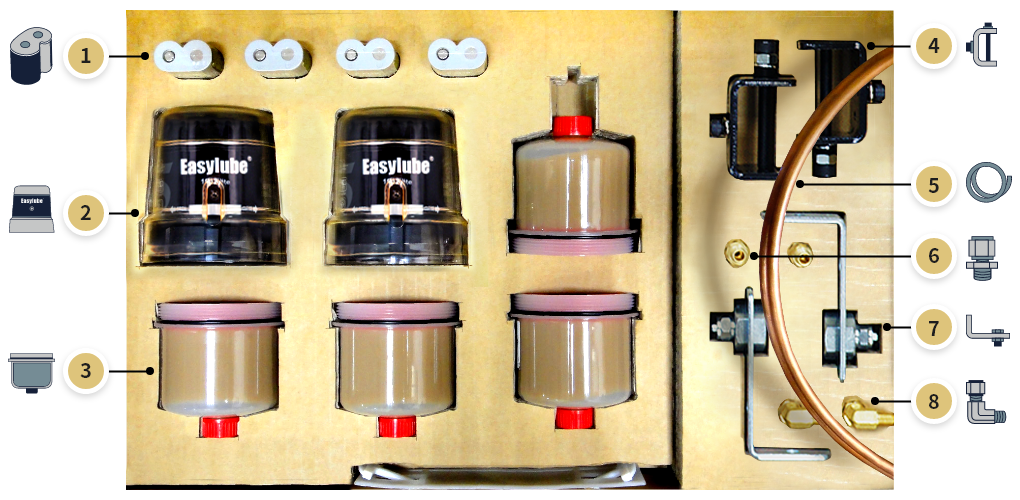

Easylube® Elite - Remote installation (C)

① Battery：P-613B

② Automatic Lubricators：60, 150, 250 Elite

③ Grease：1000, 1500, 2000, 5000

④ C Type Holder：P-506C

⑤ Copper Pipe：P-608H

⑥ Copper Pipe Connector：P-601H

⑦ Copper Pipe Connector Holder：P-406F

⑧ Copper Pipe 90° Angle Connector：P-691H

Easylube® Classic

Lubricator Model Number：

150 Classic

Retail Kit：

Product Number：

ER_150C_1000A, ER_150C_1500A, ER_150C_2000A, ER_150C_5000A

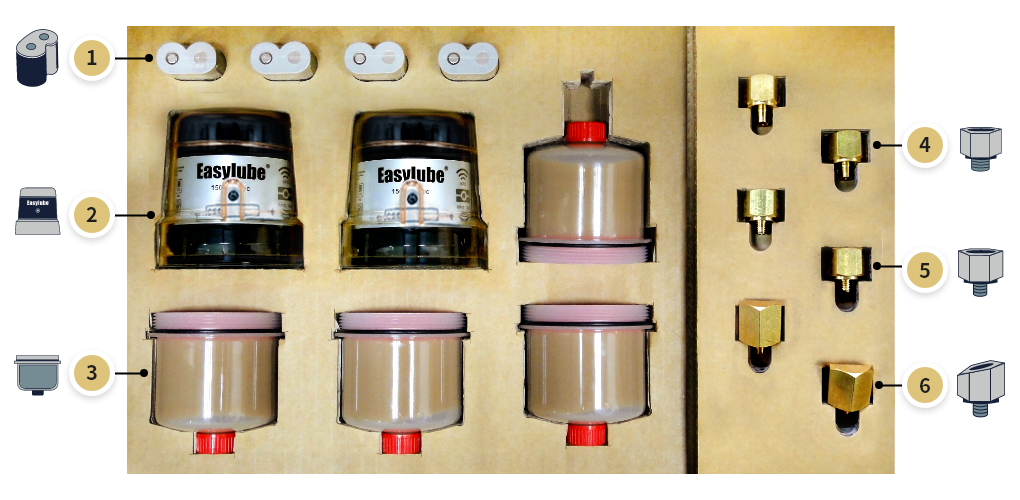

Easylube® Classic - Direct installation (A)

① Battery：P-613B

② Automatic Lubricators：60, 150, 250 Classic

③ Grease：1000, 1500, 2000, 5000

④ Straight Connection Parts：P-401S

⑤ Straight Connection Parts：P-410S

⑥ 45° Angle Connection Parts：P-401A

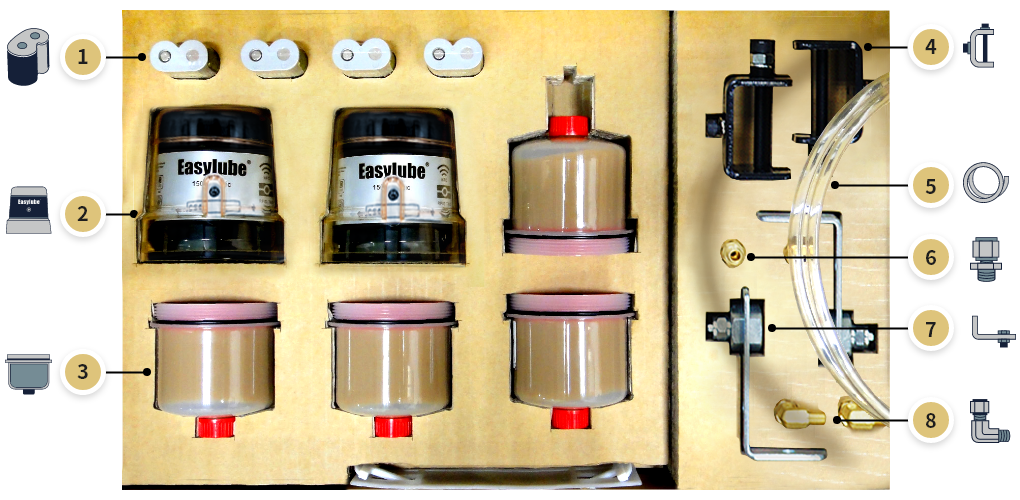

Easylube® Classic - Remote installation (B)

① Battery：P-613B

② Automatic Lubricators：60, 150, 250 Classic

③ Grease：1000, 1500, 2000, 5000

④ C Type Holder：P-506C

⑤ PU Hose：P-508U

⑥ PU Hose Connector：P501U

⑦ PU Hose Connector Holder：P-405F

⑧ PU Hose 90° Angle Connector：P-591U

Easylube® Classic - Remote installation (C)

① Battery：P-613B

② Automatic Lubricators：60, 150, 250 Classic

③ Grease：1000, 1500, 2000, 5000

④ C Type Holder：P-506C

⑤ Copper Pipe：P-608H

⑥ Copper Pipe Connector：P-601H

⑦ Copper Pipe Connector Holder：P-406F

⑧ Copper Pipe 90° Angle Connector：P-691H

Easylube® DIY

Lubricator Model Number：

60 / 150 / 250 RFID

60 / 150 / 250 Elite

150 Classic

Retail Kit：

Product Number：

RFID：ER_60R_0000A, ER_150R_0000A, ER_250R_0000A

Elite：ER_60E_0000A, ER_150E_0000A, ER_250E_0000A

Classic：ER_150C_0000A

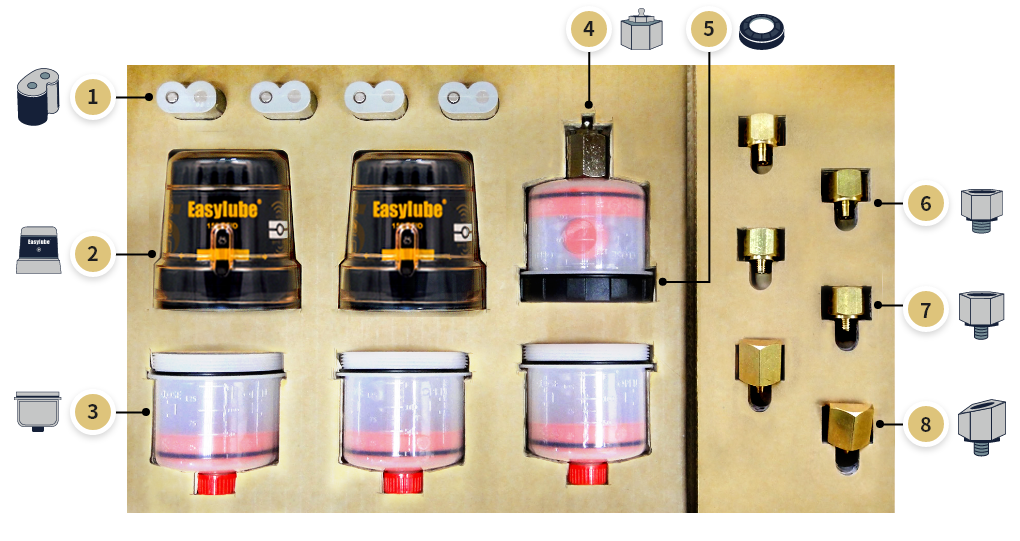

Easylube® DIY - Direct installation (A)

① Battery：P-613B

② Automatic Lubricators：RFID / Elite / Classic

③ Grease：1000, 1500, 2000, 5000

④ Refill Grease Nipple：P-400G

⑤ Position Cap：P-151C

⑥ Straight Connection Parts：P-401S

⑦ Straight Connection Parts：P-410S

⑧ 45° Angle Connection Parts：P-401A

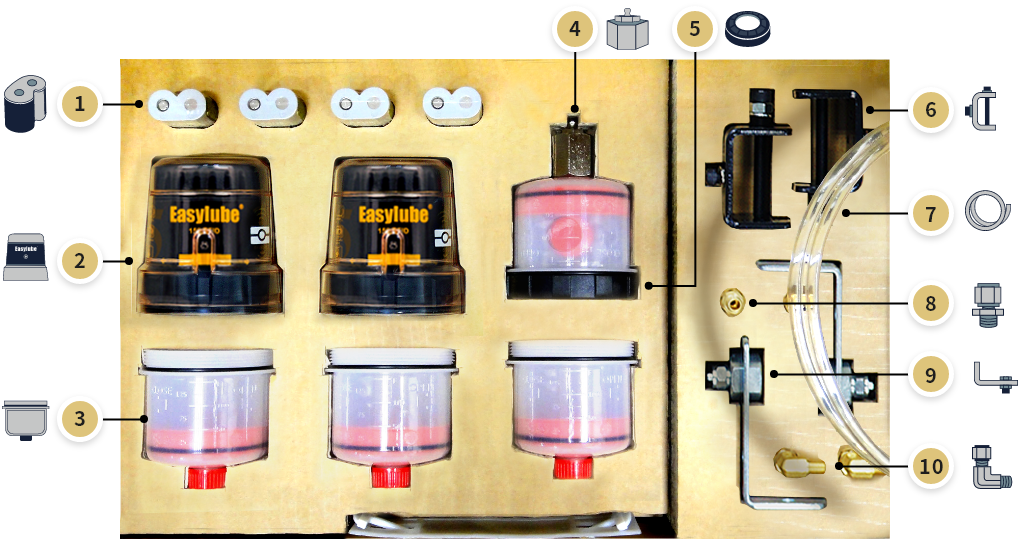

Easylube® DIY - Remote installation (B)

① Battery：P-613B

② Automatic Lubricators：60 / 150 / 250 Classic

③ Grease：1000, 1500, 2000, 5000

④ Refill Grease Nipple：P-400G

⑤ Position Cap：P-151C

⑥ C Type Holder：P-506C

⑦ PU Hose：P-508U

⑧ PU Hose Connector：P501U

⑨ PU Hose Connector Holder：P-405F

⑩ PU Hose 90° Angle Connector：P-591U

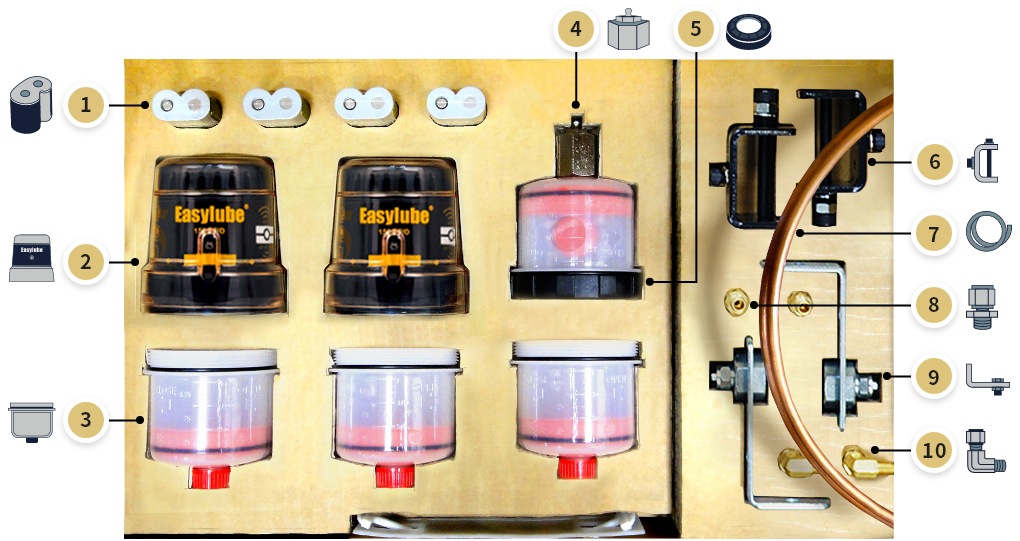

Easylube® DIY - Remote installation (C)

① Battery：P-613B

② Automatic Lubricators：60 / 150 / 250 Classic

③ Grease：1000, 1500, 2000, 5000

④ Refill Grease Nipple：P-400G

⑤ Position Cap：P-151C

⑥ C Type Holder：P-506C

⑦ Copper Pipe：P-608H

⑧ Copper Pipe Connector：P-601H

⑨ Copper Pipe Connector Holder：P-406F

⑩ Copper Pipe 90° Angle Connector：P-691H
