ATEX international explosion proof certified
IECEx international explosion proof certified
Non-sparking safety motor
Super reinforced protection case
Intuitive tri-color indicator lights
Guaranteed Lifespan of 5+ Years
 |

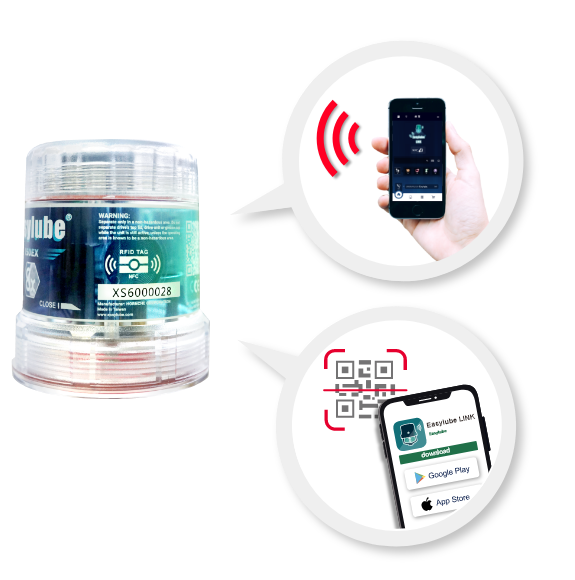

RFID technology (NFC) cooperates with the inspection software to implement "on-site inspection" service management. |
|---|
 |
With IP66 dustproof and waterproof rating, it can overcome severe pollution application environment. |
|---|
 |
24-hour active monitoring, once the equipment is abnormal, it will immediately blink the warning light. |
|---|
 |
The patented grease feedback pressure monitoring system can ensure that grease is added systematically into the bearing for lubrication. |
|---|
 |
The re-greasing interval can be set according to the bearing operating conditions to the range of 0.5-12 months |
|---|
 |
The lubricator self-test function can be used to confirm whether the driving system is operating normally or not. |
|---|
| Product Number | EX-150EX |
|---|---|
| Product Model | Easylube® 150 ATEX |
| Outlet Diameter | 1/2" PT (M) |
| Grease Volume | 150 ml |
| Grease Interval Range | Adjustable from 0.5 to 12 months |
| Operating Environment Temperature Range | -20 ~ 60°C (-4 ~ 140°F) |
| Pressure Plate Thrust (Piston) | 5 - 150 psi Automatic adjustment according to bearing's back pressure |
| Outlet Pressure (Grease Cup Outlet) | Less than 10 bars to prevent grease leakage through the shaft seal |
| Operation Indicator | Green Light: Normal Timing Single Orange Light: Low Battery Double Orange Lights: Abnormal Pressure Red Light: Grease Injection Complete |
| Product Size (Height x Diameter) | 15.7 x 8.35 cm (6.18 x 3.28") |
|
Easylube® Original Service Pack
Product Number：EX-150-XXXX-3A Coding Principles： EX Series + Capacity + Grease Cup Specification + Lithium Battery |
Rated Power (Lithium Battery Model / Specification)：
Easylube® P-613A DC 6V x 1600 mAh, UL94-V0 |
| Easylube® Grease Refiller (Grease Specification / Product Name)：
EX-150-1000 High Speed Grease Cup EX-150-1500 Multipurpose Grease Cup EX-150-2000 High Performance Grease Cup EX-150-5000 Food Grade Grease Cup EX-150-0000 DIY Empty Grease Cup Kit |
|
| ATEX Hazardous Location Application Specification |  II 3 G EX ec IIC T6 GcDEMKO 20 ATEX 2227X Rev. 2 |
| IECEx Hazardous Location Application Specification | EX ec IIC T6 Gc IECEx UL 25.0045X |
| Dustproof and Waterproof Grade | IP66 |
| CE Certification | EMC SGS Ref. No.: MH/2020/10001C RED SGS Ref. No.: MH/2020/10002C |
