Easylube® Explosion-proof Service Pack (EX)

PathHomepage / Products / Easylube® Service Pack / Explosion-proof Series (EX)

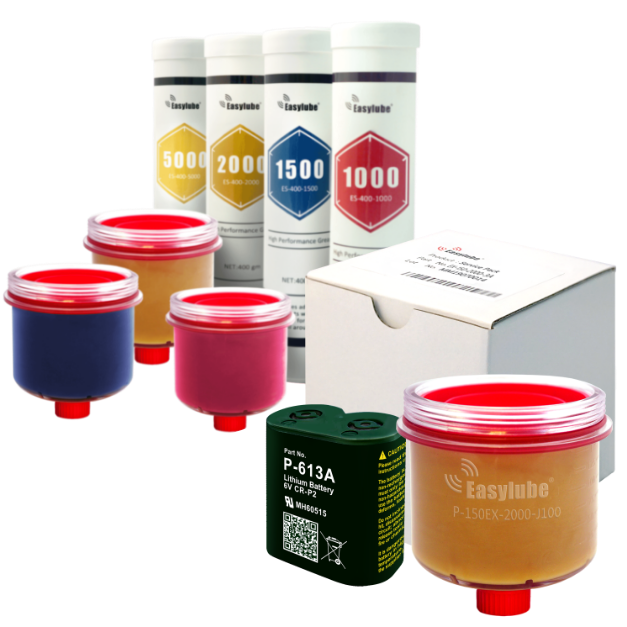

Easylube® Service Pack - Explosion Proof type
Easylube® Service Pack - NoticeNotice

The grease cup replacement and lithium battery are set to be replaced at the end of each lubrication cycle to ensure the automatic lubricator functions properly. If the red warning light is flashing continuously (alert state), the user should immediately be aware of the problem and check whether the grease cup is empty, the battery power is insufficient, the grease injection pathway is blocked, or grease cannot be injected normally.

It is recommended that you use the grease replacement and lithium battery box specified by the original manufacturer to maximize the efficiency of the automatic lubricator, hence reducing consumption and operating costs, while avoiding pollution or usage problems, thus enjoy the best returns.

Easylube Secret File Quality Assurance Certification Easylube Secret File Grease Technical Information Easylube Secret File Grease Safety Data Sheet Easylube Secret File Battery Safety Data Sheet
Easylube® Service Pack - Explosion Proof type
Notice

Please check that the products are laser engraved with trademark, model and serial number to ensure they are the original manufacturer's service pack produced by Easylube®

High Performance Grease
High Performance Grease
High Performance Grease
Easylube® Service Pack - ChooseHow to choose grease specification

When you expect to achieve the required lubrication performance and maintenance level with the lowest possible cost, you must consider key factors such as bearing specifications, operating speeds, and application environments. To help you evaluate these key factors, we provide a specialized selection process and examples of lubrication operation standards. When you input bearing specifications, operating speeds, and application environmental conditions into the MQL calculator of the Easylube® LINK software, it will recommend the appropriate lubricant specifications, the greasing volume for the bearing, and the interval for re-lubrication. With this scientific data, you can easily choose the suitable Easylube® high-performance lubricant on these recommendations.

If you have any questions or need any assistance when using the grease selection process guide or the information in the product section, please contact the Easylube® Service Center.

Easylube® Service Pack - LightIndicator Instruction
  • The patented feature of Easylube® is that each lubricator is independently equipped with a smart management circuit. Normally, it will actively detect, control, and automatically perform grease injection. A green light will be displayed during the re-greasing intervals to let you know that it is in normal state of operation.

  • When you find that the red light flashes continuously during the inspection, it means that its grease has been used up. Please replace with a new grease cup.

  • When you find that the orange light is flashing (singular flashes), it means that its battery is at low voltage. Please replace with a new lithium battery.

  • When you find that the orange light flashes alternately (double flashes), it means that it has detected the grease injection line is blocked, or the lubricator is malfunctioning. Please check and eliminate the problem immediately.

The intuitive indication light design helps users to detect problems instinctively, so that the automatic lubricator can be at the highest efficiency, while reducing consumption and operating costs, avoiding labor accidents, and enjoy the best returns.


Real-World Applications

Steel Manufacturing
Steel
Cement/Tile Manufacturing
Cement
Rubber/Plastic Manufacturing
Rubber
Paper Industry
Paper
Mining Industry
Mining
Semiconductor/Electronics Industry
Electronics

Product Type

P = Part, EX = Easylube Service Pack - Explosion Proof type

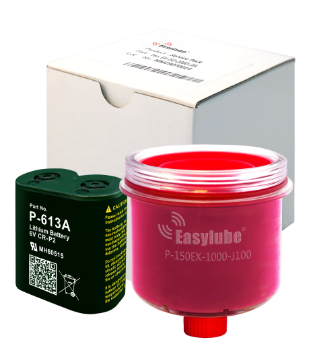

Easylube® Service Pack - High Speed Grease
Easylube® Service Pack - High Speed GreaseEasylube® 1000 High Speed Grease Service Pack
Product Number Grease Specification Lithium Battery Spec
EX-150-1000-3A

150 ml (5.282 oz)

NLGI #2

ISO VG 100

Grease Dropping Point:>290˚C (554˚F)

Extreme Pressure Test:> 65 lbs

Oil Separation: < 0.2%

Speed Factor:up to 625K

P-613A

DC 6V x 1600mAh

UL94-V0 Flameproof rating

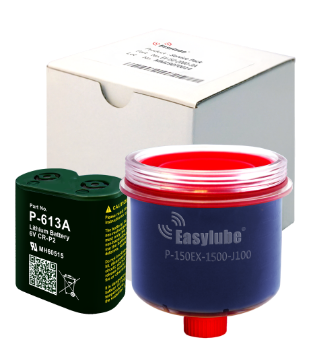

Easylube® Service Pack - Multi Purpose Grease
Easylube® Service Pack - Multi Purpose GreaseEasylube® 1500 Multi-Purpose Grease Service Pack
Product Number Grease Specification Lithium Battery Spec
EX-150-1500-3A

150 ml (5.282 oz)

NLGI #2

ISO VG 150

Grease Dropping Point:>282˚C (540˚F)

Extreme Pressure Test:> 65 lbs

Oil Separation: < 0.1%

Speed Factor:up to 380K

P-613A

DC 6V x 1600mAh

UL94-V0 Flameproof rating

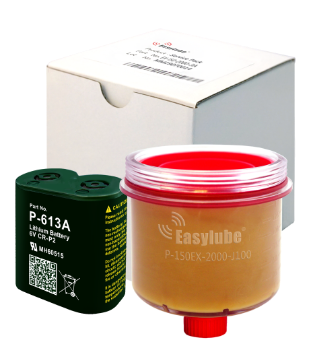

Easylube® Service Pack - High Efficiency Grease
Easylube® Service Pack - High Efficiency GreaseEasylube® 2000 High Efficiency Grease Service Pack
Product Number Grease Specification Lithium Battery Spec
EX-150-2000-3A

150 ml (5.282 oz)

NLGI #2

ISO VG 220

Grease Dropping Point:>300˚C (572˚F)

Extreme Pressure Test:> 65 lbs

Oil Separation: < 0.17%

Speed Factor:up to 225K

P-613A

DC 6V x 1600mAh

UL94-V0 Flameproof rating

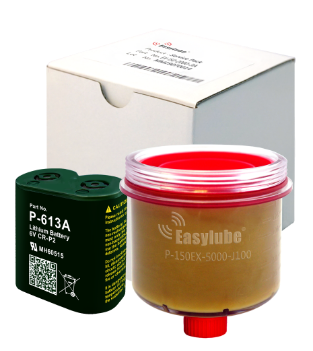

Easylube® Service Pack - Food Grade Grease
Easylube® Service Pack - Food Grade GreaseEasylube® 5000 Food Grade Grease Service Pack
Product Number Grease Specification Lithium Battery Spec
EX-150-5000-3A

150 ml (5.282 oz)

NLGI #2

ISO VG 100

Food Grade:NSF H1

Grease Dropping Point:>300˚C (572˚F)

Extreme Pressure Test:> 65 lbs

Oil Separation: < 0.2%

Speed Factor:up to 625K

P-613A

DC 6V x 1600mAh

UL94-V0 Flameproof rating

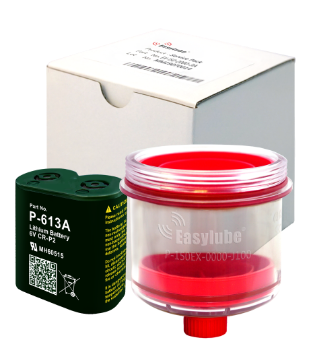

Easylube® Service Pack - DIY
Easylube® Service Pack - DIYEasylube® DIY Service Pack
Product Number Grease Specification Lithium Battery Spec
EX-150-0000-3A

150 ml (5.282 oz)

The empty grease cup service pack can be filled with grease specified by the equipment's original manufacturer.

P-613A

DC 6V x 1600mAh

UL94-V0 Flameproof rating

Notice

Please ensure to dispose or to recycle the depleted consumables (grease refill and battery box) in accordance with the environmental protection policies and regulations stipulated by local laws. In particular, it is strictly forbidden for the lithium battery box to be recharged, disassembled, heated, burned, used outside the scope of the design, or thrown into water or fire; these improper actions may cause toxic substances to be released and harm human health and cause environmental pollution.
