Easylube® Remote Control Service Pack (NX)

PathHomepage / Products / Easylube® Service Pack / Remote Control Series (NX)

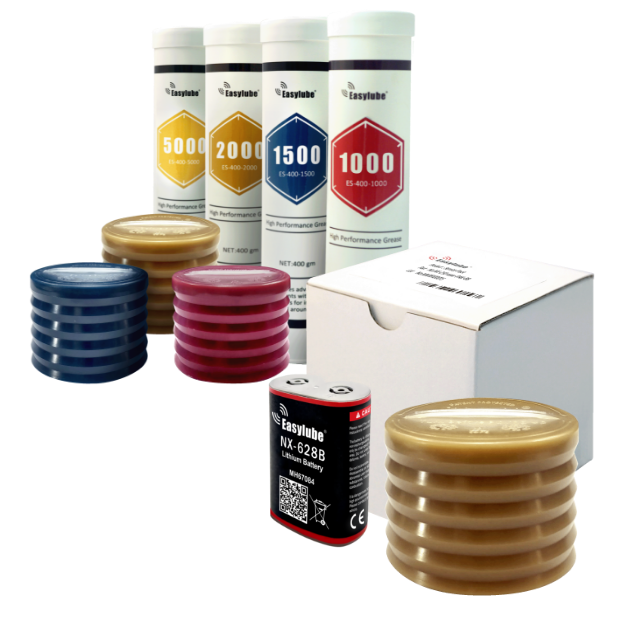

Easylube® Service Pack - NX
Easylube® Service Pack - NoticeNotice

Patented Grease Pak is designed for use with the Nexus wireless transmission drive unit. After the lubricaiton cycle is complete, the Nexus drive unit will automatically reset the pressure plate to return to the full cup position, and a flashing red light will indicate "Replace Grease Pak." In the case of a depleted battery, a flashing single orange light will indicate the need to "Replace the Lithium Battery".

The Nexus wireless transmission drive unit will automatically interconnect operational status information on Easylube® LINK. Managers can conveniently check real-time operating information for each lubrication point through the mobile app, schedule tasks on the calendar, and set reminders for timely execution.

Please adhere to the technical specifications of the automatic lubricator, use original consumables and authorized operating software of Easylube®, to maintain the legal right to use the product.

For detailed instructions on replacing consumables, please refer to the Easylube® Nexus Installation Specifications Manual.

Easylube Secret File Quality Assurance Certification Easylube Secret File Grease Technical Information Easylube Secret File Grease Safety Data Sheet Easylube Secret File Battery Safety Data Sheet
High Performance Grease
High Performance Grease
High Performance Grease
Easylube® Service Pack - ChooseHow to choose grease specification

When you expect to achieve the required lubrication performance and maintenance level with the lowest possible cost, you must consider key factors such as bearing specifications, operating speeds, and application environments. To help you evaluate these key factors, we provide a specialized selection process and examples of lubrication operation standards. When you input bearing specifications, operating speeds, and application environmental conditions into the MQL calculator of the Easylube® LINK software, it will recommend the appropriate lubricant specifications, the greasing volume for the bearing, and the interval for re-lubrication. With this scientific data, you can easily choose the suitable Easylube® high-performance lubricant on these recommendations.

If you have any questions or need any assistance when using the grease selection process guide or the information in the product section, please contact the Easylube® Service Center.

Easylube® Service Pack - PatentPatented Design
NX grease cup

The Patented Grease Pak is designed with a pull ring. After lubrication is complete, when the Grease Pak is compressed at the bottom, it is easy for you to take out and replace with a new one. When reassembling the drive unit, please align it with the positioning mark on the piston of the drive unit's pressure plate. Place it in the groove, reassemble, and lock the threaded ring.

NX battery

The new lithium battery design features a patented protective cover that safeguards both positive and negative terminals. It includes voltage measurement capabilities, eliminating the drawbacks of traditional heat-shrink film wrapping. This design improves ease of disassembly, addresses issues related to moisture and heat-shrink film cutting, and minimizes the occurrence of static electricity attraction.

Easylube® NX Service Pack - Feature

Replacing consumables is now more convenient.

Easylube® NX Service Pack - Feature

The quality of original consumables is guaranteed.

Easylube® NX Service Pack - Feature

Economical, environmentally friendly, and cost-effective Grease Paks.

Easylube® NX Service Pack - Feature

The assembly method is simple and convenient.

Easylube® NX Service Pack - Feature

Specially formulated lubricant with professional design.

Easylube® NX Service Pack - Feature

Grease with water resistance, temperature resistance, and extreme pressure resistance.


Real-World Applications

Steel Manufacturing
Steel
Cement/Tile Manufacturing
Cement
Rubber/Plastic Manufacturing
Rubber
Paper Industry
Paper
Mining Industry
Mining
Semiconductor/Electronics Industry
Electronics

Product Type

Product Model:NX-250-XXXXPAK-8B
Coding Principles:Nexus Series + Capacity + Grease Pak Specifications + Lithium Battery

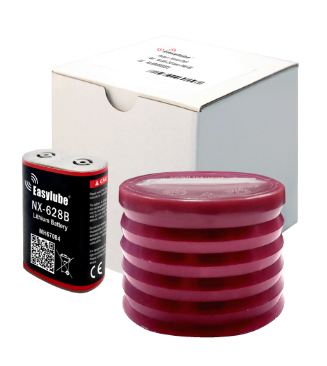

Easylube® Service Pack - High Speed Grease
Easylube® Service Pack - High Speed GreaseEasylube® 1000 High Speed Grease Service Pack
Product Number Grease Specification Lithium Battery Spec
NX-250-1000PAK-8B

250 ml (8.803 oz)

NLGI #2

ISO VG 100

Grease Dropping Point:>290˚C (554˚F)

Extreme Pressure Test:> 65 lbs

Oil Separation: < 0.2%

Speed Factor:up to 625K

NX-628B

DC 6V x 2800mAh

UL94-V0 Flameproof rating

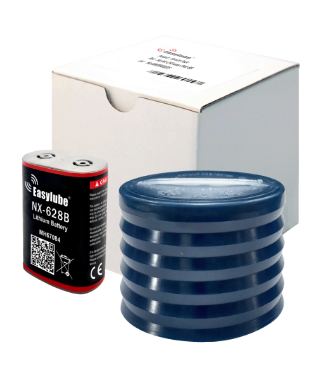

Easylube® Service Pack - Multi Purpose Grease
Easylube® Service Pack - Multi Purpose GreaseEasylube® 1500 Multi-Purpose Grease Service Pack
Product Number Grease Specification Lithium Battery Spec
NX-250-1500PAK-8B

250 ml (8.803 oz)

NLGI #2

ISO VG 150

Grease Dropping Point:>282˚C (540˚F)

Extreme Pressure Test:> 65 lbs

Oil Separation: < 0.1%

Speed Factor:up to 380K

NX-628B

DC 6V x 2800mAh

UL94-V0 Flameproof rating

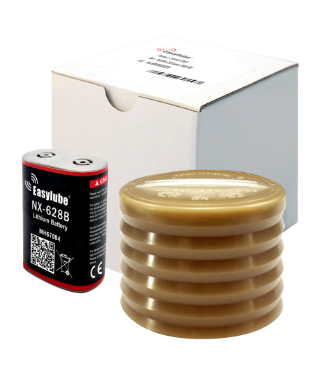

Easylube® Service Pack - High Efficiency Grease
Easylube® Service Pack - High Efficiency GreaseEasylube® 2000 High Efficiency Grease Service Pack
Product Number Grease Specification Lithium Battery Spec
NX-250-2000PAK-8B

250 ml (8.803 oz)

NLGI #2

ISO VG 220

Grease Dropping Point:>300˚C (572˚F)

Extreme Pressure Test:> 65 lbs

Oil Separation: < 0.17%

Speed Factor:up to 225K

NX-628B

DC 6V x 2800mAh

UL94-V0 Flameproof rating

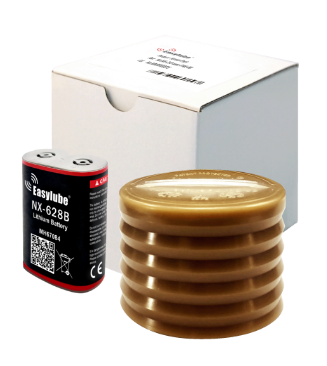

Easylube® Service Pack - Food Grade Grease
Easylube® Service Pack - Food Grade GreaseEasylube® 5000 Food Grade Grease Service Pack
Product Number Grease Specification Lithium Battery Spec
NX-250-5000PAK-8B

250 ml (8.803 oz)

NLGI #2

ISO VG 100

Food Grade:NSF H1

Grease Dropping Point:>300˚C (572˚F)

Extreme Pressure Test:> 65 lbs

Oil Separation: < 0.2%

Speed Factor:up to 625K

NX-628B

DC 6V x 2800mAh

UL94-V0 Flameproof rating

Notice

Please ensure to dispose or to recycle the depleted consumables (battery box) in accordance with the environmental protection policies and regulations stipulated by local laws. In particular, it is strictly forbidden for the lithium battery box to be recharged, disassembled, heated, burned, used outside the scope of the design, or thrown into water or fire; these improper actions may cause toxic substances to be released and harm human health and cause environmental pollution.
